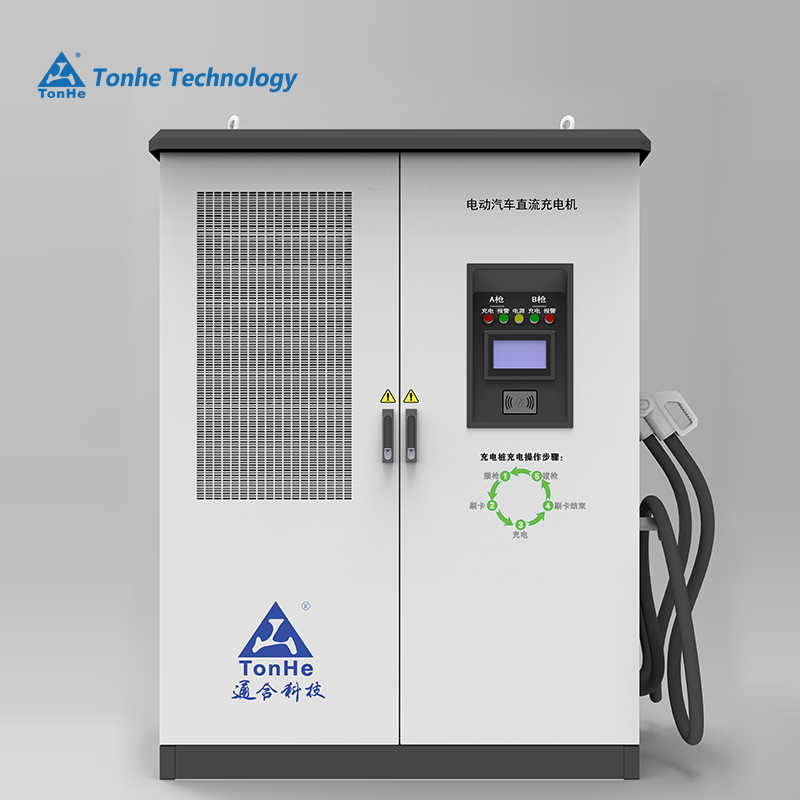

240kW-480kW EV DC CHARGER
Constant power from 200-1000VDC
Up to 480kw fast charger
Average efficiency ≥95% at nominal output power

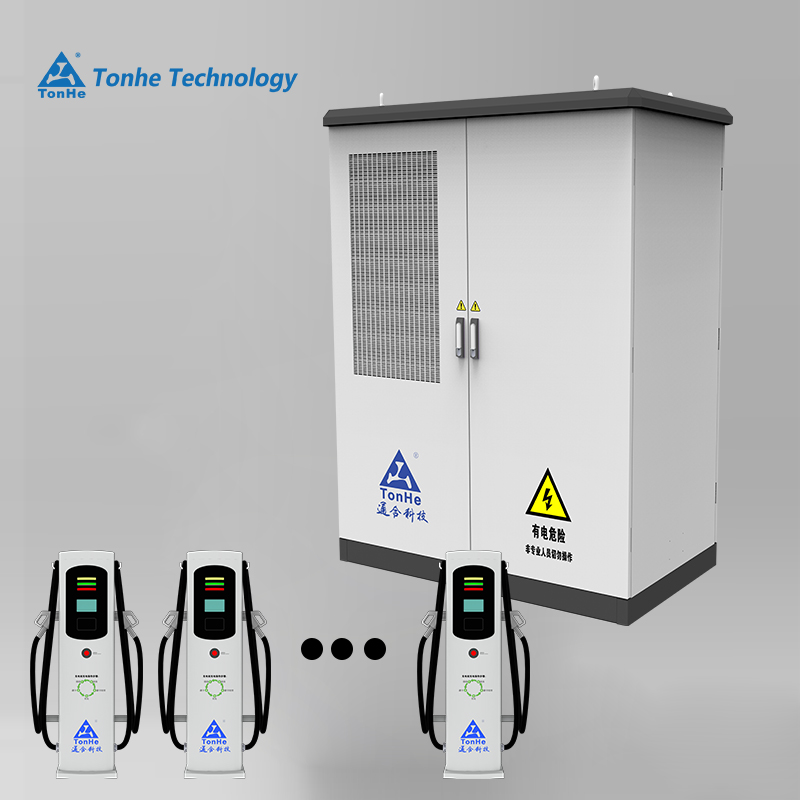

One charger with many outputs, simultaneously charging
Ethernet/4G/OCPP communication
High protection grade as IP54
APP operation or RFID authentication or plug and play
CE certificate NB 1282
OEM/ODM
LOGO customize
|
Techdata sheet
Model | THGZQW-240/260/280/300/320/400/480kW-G32 |
Phases/Lines | 3 phases+neutral+PE |
Voltage | 380VAC±20% |
Frequency | 50Hz±10% |
Power | 240-480kW |
Voltage | 200-750/1000VDC |
Current (max.) | CCS 2 200A, CHAdeMO 125A,GB/T 250A,Up to many charging guns |
Cable Lenth | OEM |
Connector | CCS2 or CHAdeMO or GB/T |
Power Factor | ≥0.99 |
THD Value | ≤5% |
Stable Voltage Accuracy | ≤±0.5% |
Stable Current Accuracy | ≤±1% |
Efficiency | ≥96% at nominal output power |
Housing Material | Galvanized steel |
Installation Method | Floor-stand |
LED Indicator | 7 inches |
Emergency Stop Button | Mushroom headed type |
Payment Method | RFID CARD |
External | Ethernet, and 3G/4G |
Communication Protocal | OCPP1.6J |
Working Temperature | -30ºC-+55ºC |
Working Altitude | ≤2000M |
Application Site | Indoor/Outdoor |
Cooling Method | Forced air cool |
Multiple Protection | Over Current, Under Current, Over Voltage, Residual Current, Surge Protection, Short Circuit, Earth Fault at input and output, Input Phase reversal, Emergency Shut-down with alarm, over temperature, Protection against electric shock. |

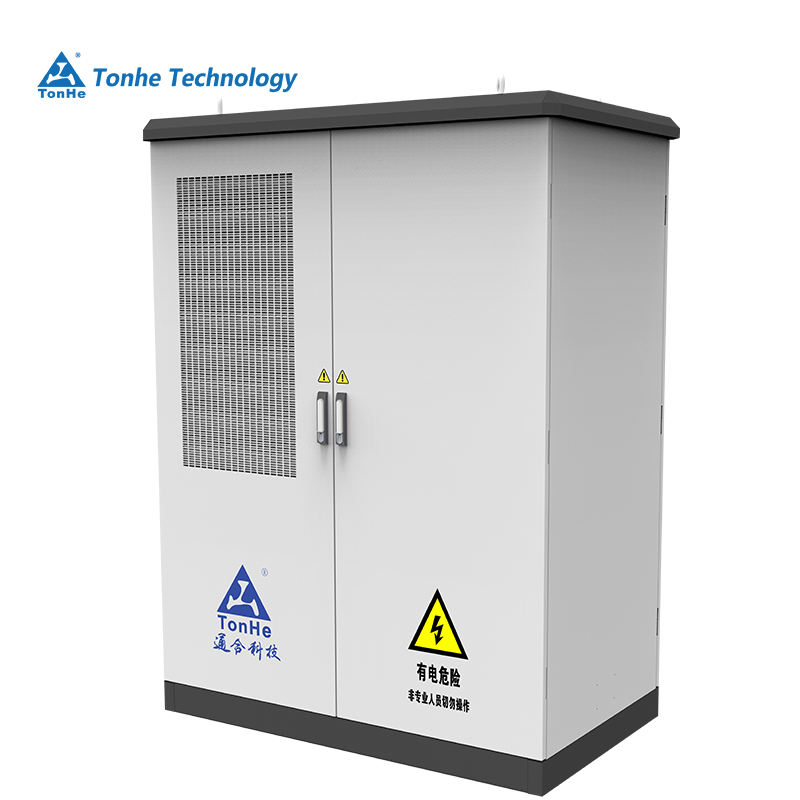

Product Dimension | Rectifier cabinet: 1400*1900mm*800mm(W*D*H) Split pile: 490mm*1830mm*340mm(W*D*H) |
External Packing | Wooden case |
