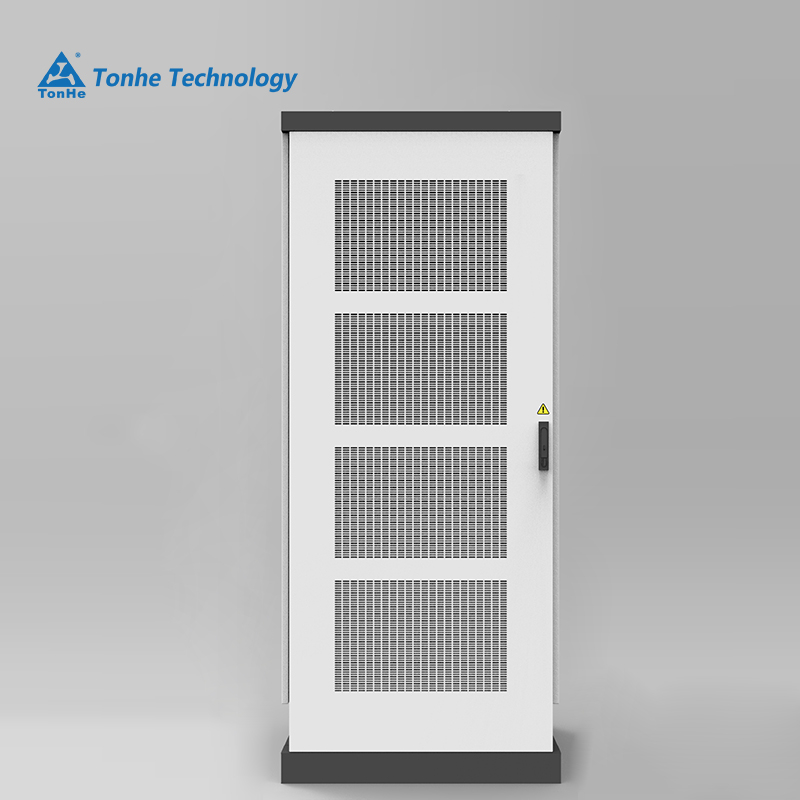

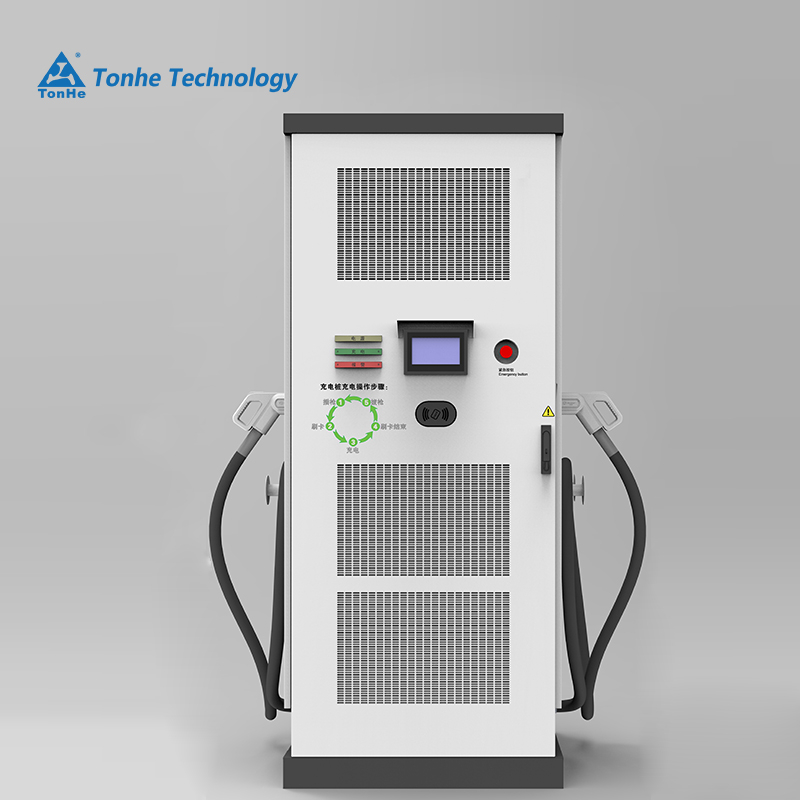

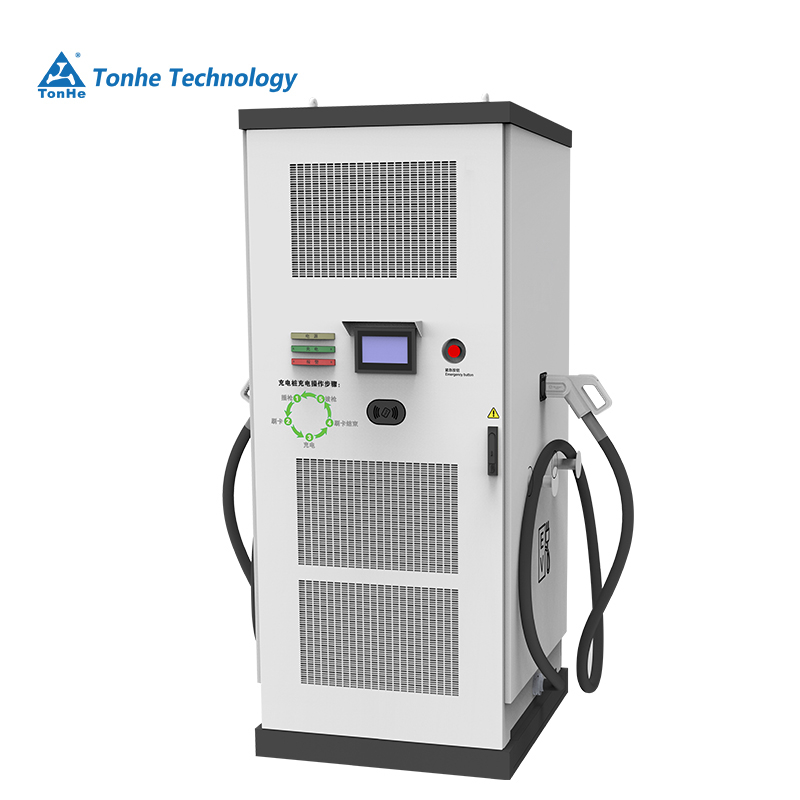

| Product Description
Constant power from 200-1000VDC
Up to 400kw fast charger
Average efficiency ≥96% at nominal output power
One charger with two outputs, simultaneously charging
Ethernet/3G/4G/OCPP communication
High protection grade as IP54
APP operation or RFID authentication or plug and play
CE certificate NB 1282
OEM/ODM
LOGO customize
| Techdata sheet
Model | TTHGZQW-200/220/240/260/280/300/360/400kW |
Phases/Lines | 3 phases+neutral+PE |
Voltage | 380VAC±20% |
Frequency | 50Hz±10% |
Power | 200-400kW |
Volatge | 200-1000VDC |
Current (max.) | CCS 2 200A,CHAdeMO 125A,GB/T 250A,Up to two charging guns |
Cable Lenth | 5m |
Connector | CCS2 or CHAdeMO or GB/T |
Power Factor | ≥0.99 |
THD Value | ≤5% |
Stable Voltage Accuracy | ≤±0.5% |
Stable Current Accuracy | ≤±1% |
Efficiency | ≥96% at nominal output power |
Housing Material | Galvanized steel |
Installation Method | Floor-stand |
LED Indicator | 7 inches |
Emergency Stop Button | Mushroom headed type |
Payment Method | RFID CARD |
External | Ethernet, and 3G/4G |
Communication Protocal | OCPP1.6J |
Working Temperature | -30ºC-+55ºC |
Working Altitude | ≤2000M |
Application Site | Indoor/Outdoor |
Cooling Method | Forced air cool |
Multiple Protection | Over Current, Under Current, Over Voltage, Residual Current, Surge Protection, Short Circuit, Earth Fault at input and output, Input Phase reversal, Emergency Shut-down with alarm, over temperature, Protection against electric shock. |
Product Dimension | 900*1085*2167(W*D*H) |
Net Weight | 230KG |
External Packing | Wooden case |
|Production Center
Tonhe Technology passed the ISO9001 quality management system, IATF16949 automotive quality management system certification, The manufacturing center has 2 fully automatic SMT assembly lines, automatic solder paste printing and inspection instrument,plug-in wave soldering assembly line, automatic three-protective spraying line, aging detection line, advanced technology, complete supporting facilities, perfect quality assurance, more than 500,000 units of charging modules annual output, from here to the world after over 50 production processes.
|Test Center
Tonhe Technology has owned a first-class EMC laboratory, which has been certified by both CNAS (China National Accreditation for Conformity Assessment ) and DiLAC (National Defense Science, Technology and Industry Laboratory Accreditation Committee).
|
|
| World-class standard semi anechoic 3m EMC chamber is designed and built by FRANKONIA from Germany, it can be used for radiated emission and radiated immunity test of information technology equipment, charger, electric power equipment, industrial medical equipment and automotive electronic parts & components. | |
|
|
| Chroma electric load, AC Source; Yokogawa WT1800 high performance power analyzer; Fluke 8808A 5.5 digits desktop digital multimeter; -60℃-+150℃ temperature and humidity test chamber. | Equipped 2 300kVA AC stable power supply, 2 sets of 200kW DC load, a 17㎡ step-in temperature and humidity test chamber, charger system test could be done. |
|
|
| AXOS8 test system integrates surge, EFT and DIPs tests in one, which is convenient and reliable! | First-class transient immunity laboratory is built by HAEFELY from Switzerland. |
|Certificate Showcase
|Packaging & Shipping
|FAQ
1 What are modules of communication protocol?
For our EV charging modules communication protocol is CAN and the CAN baud rate is 125kbs, the CAN voltage level is 5v.
2. Do the modules support glue filling?
Yes, All series modules can support glue filling.
3. What are the requirements for the installation method of the charging module?
The charging module can be installed horizontally, side standing or upside down. If upside down installation is used, please contact our company to customize the front panel without a handle.
4. How do you handle shipments?
1) For small orders, we send goods by FedEx, DHL, UPS, express service on door to door term.
2) For large shipments, we send goods by sea or by air in containers.
Ps. it's highly recommended to delegate your own forwarders to handle shipments and FOB Shijiazhuang is widely adopted by our customers.
5. What is your delivery time?
Factory direct sales and we could offer the short lead time. Normally, we need about 7days quantity at least 10pcs. And the samples in stock and do not worried. For orders in large quantities and customized orders, the time for shipment will be a little longer, we need 35 days to coordinate with our workshop to give accurate time frame to our customers.
6 .What is your term of payment?
Our standard term is 100% TT advance with order. However, it is negotiable under the condition of long-term strategic cooperation, there will 50% in advance and 50% before the delivery, or 30% at first and 70%when the goods are ready, all the details and we could negotiate them according your project progress.
7. What are your customized services?
The OEM and ODM solutions could available, we could write your company name, logo and model number on nameplate, also the colour and shape you also could send your requirements and we offer the solution.
8. How long is the warranty?
Standard warranty is 12 months upon the receipt of shipment.
9.Can you provide after-sale service?
We can provide both online and on-site after-sale service depending on respective contract and actual conditions. Considering the project, We promise 24hr-response scheme.
10. What certifications have you obtained for your company and products?
The ISO9001, IATF16949 automobile quality management system certification and double software certification; CE, TUV, etc., For now, our charging modules&EV chargers have been exported to overseas countries, including Australia, Russia, Germany, Italy, Turkey, India, Poland, Thailand, Singapore, Vietnam, Brazil, Colombia, etc.
