TH30F10025C7E-WT
TonHe

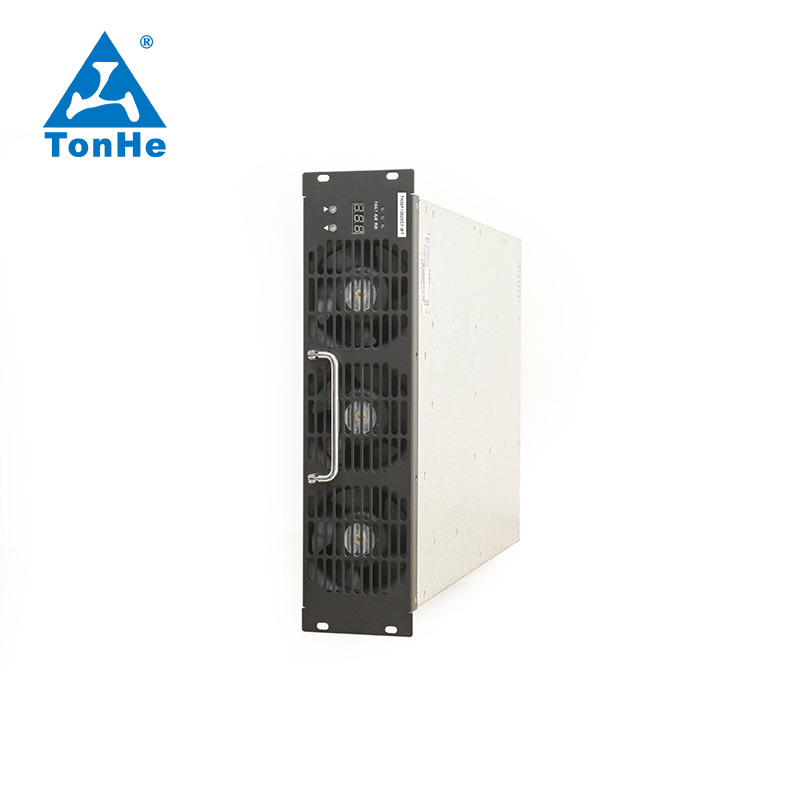

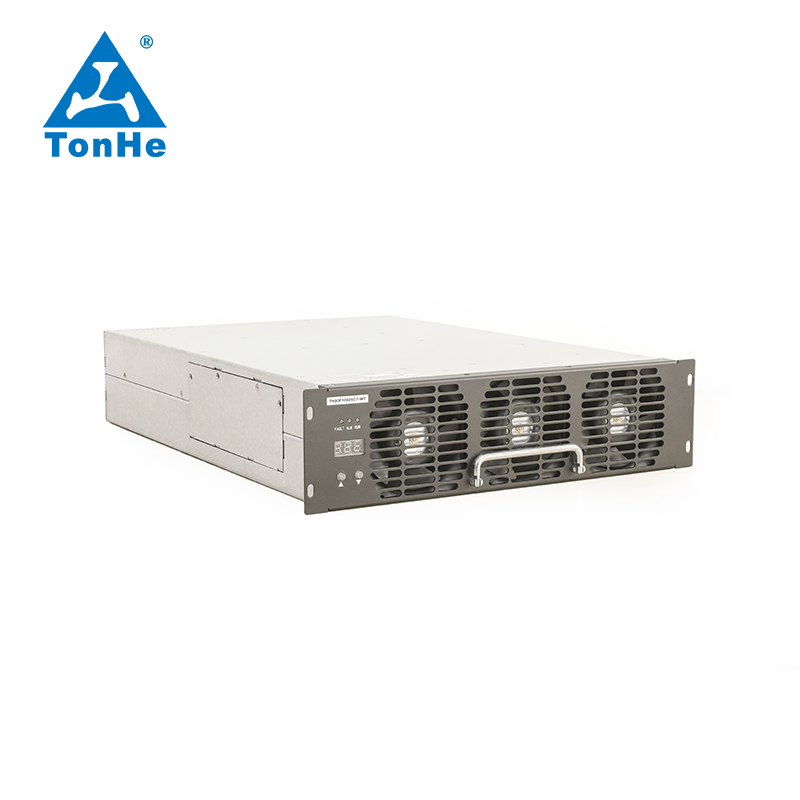

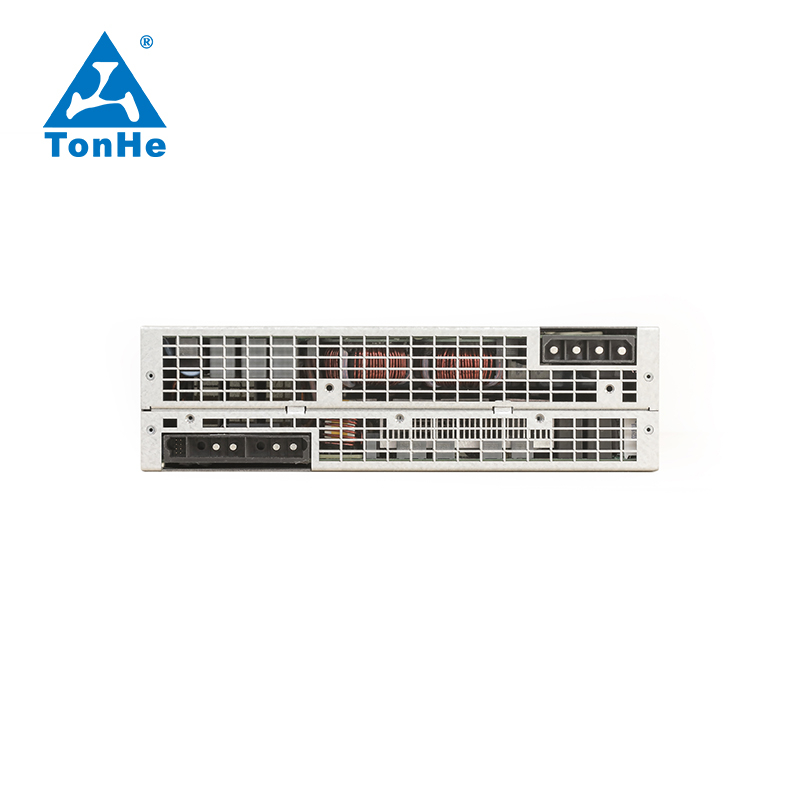

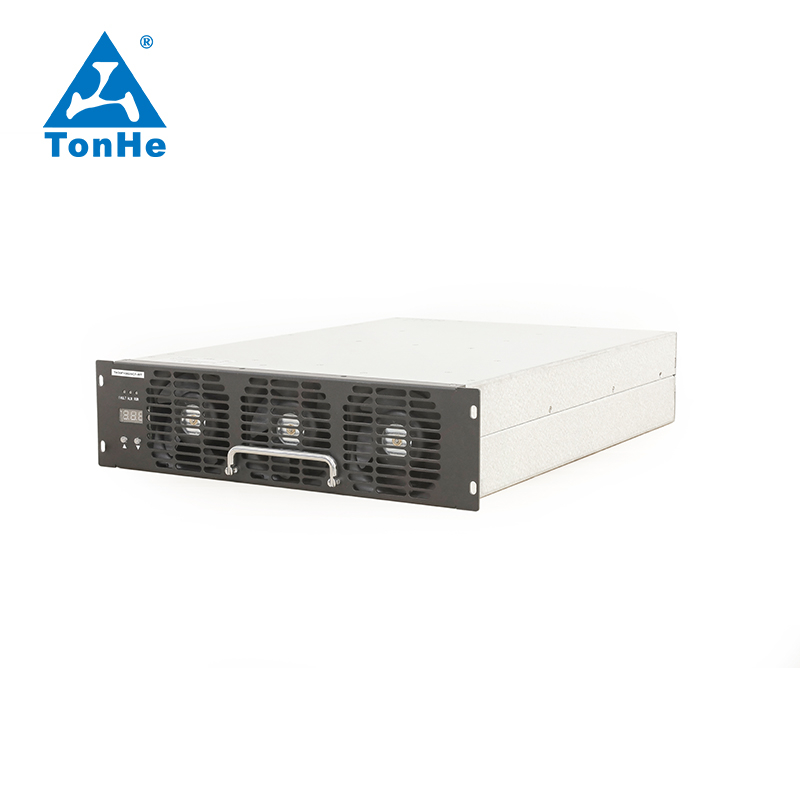

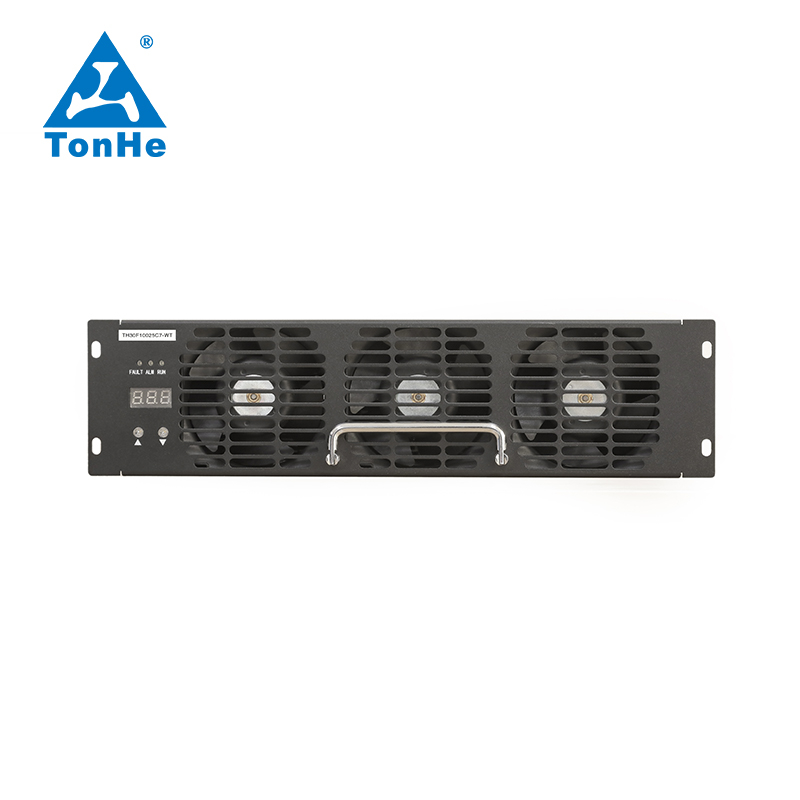

Product Introduction
TH30F10025C7E-WT EV rectifier is an AC/DC rectifier with high efficiency, high power density, ultra-wide range constant power , and ultra-wide output range developed by Tonhe Technology for electric
vehicle charging . This product supports 270 VAC-490 VAC(line voltage) three-phase four-wire system (three-phase + PE) input, rated output power 30kW, constant power range 250~1000VDC. The rectifier adopts intelligent air cooling and heat dissipation, and supports normal mode and silent mode settings. The rectifier communicates with the main monitor through the CAN bus to realize the parameter setting of the rectifier and control the working status of the rectifier.This Rectifier will interact with BMS of the battery to suitable charge the EV batteries.Without the BMS it won't be charging the battery.
Wide output constant power range: 250-1000VDC
Ultra-low standby power consumption: <10W
Ultra-low total harmonic distortion: ≤5%
Ultra-wide operating temperature: -40℃-75℃
High Conversion Efficiency: peak efficiency ≥ 96%
|
|
|

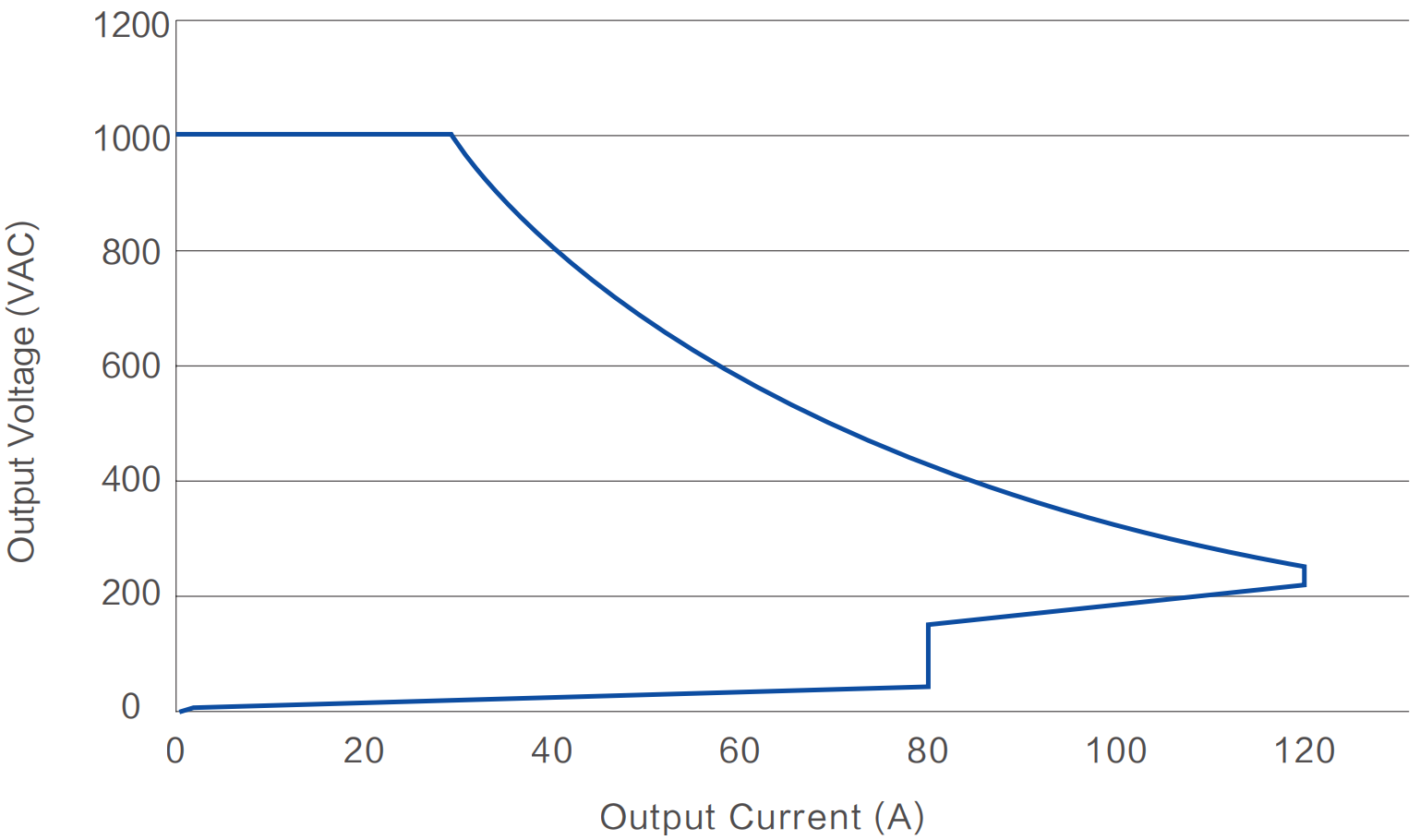

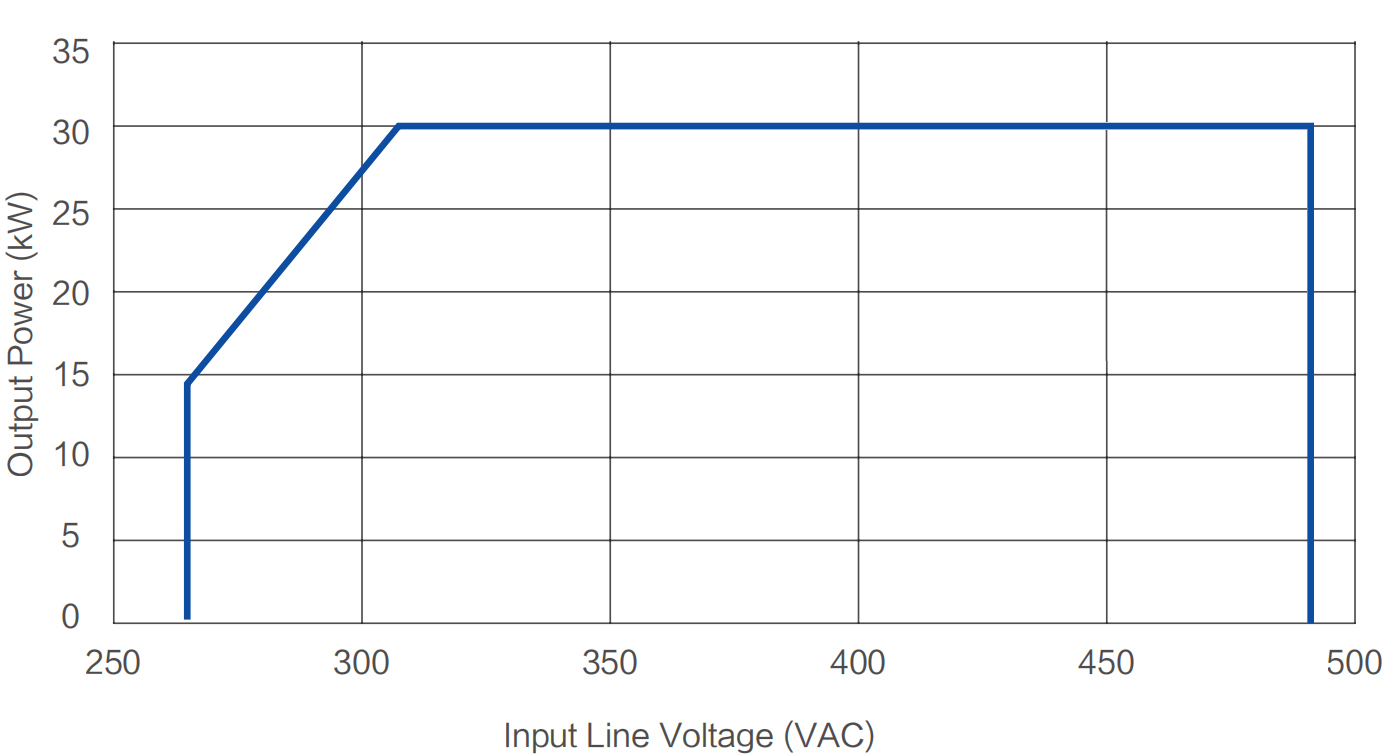

| Output Characteristics Curve | Input Power Limit Curve | Ambient Temperature Power Limit Curve |
| Model No. | TH30F10025C7E-WT | |
|---|---|---|
| AC Input | Input Voltage | Rated voltage 380Vac, three phases (no center line), operating range 270-490Vac |
| Input Frequency | 50±5Hz | |
| Input Power Factor | ≥0.99 | |
| Input Overvoltage Protection | 490±10Vac | |
| Input Undervoltage Protection | 270±10Vac | |
| DC Output | Rated Output Power | 30kW |
| Output Voltage Range | 50-1000Vdc | |
| Output Current Range | 0.5-120A | |
| Output Constant Power Range | When output voltage is 250-1000Vdc, constant 30kW will output | |
| Peak Efficiency | ≥ 96% | |
| Soft Start Time | 3-8s | |
| Short Circuit Protection | Self-rollback protection | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| THD | ≤5% | |
| Current Regulation Accuracy | ≤±1% | |
| Current Sharing Imbalance | ≤±5% | |
| Operation Environment | Working Tempurature | -30℃-75℃ |
| Relative Humidity | ≤±95% no condensation | |
| Altitude | ≤2000m, derating above 2000m | |
| Product Features | Cooling Method | Fan cooling |
| Standby Power Consumption | <10W | |
| Communication Protocol | CAN | |
| Address Setting | Digital screen display, keys operation | |
| Module Dimension | 437.5*300*84mm (L*W*H) | |
| Weight | ≤15kg | |
| MTBF | 500 000 hours | |
