20kW AC And DC Dual Input Mode Ev Charing Power Module

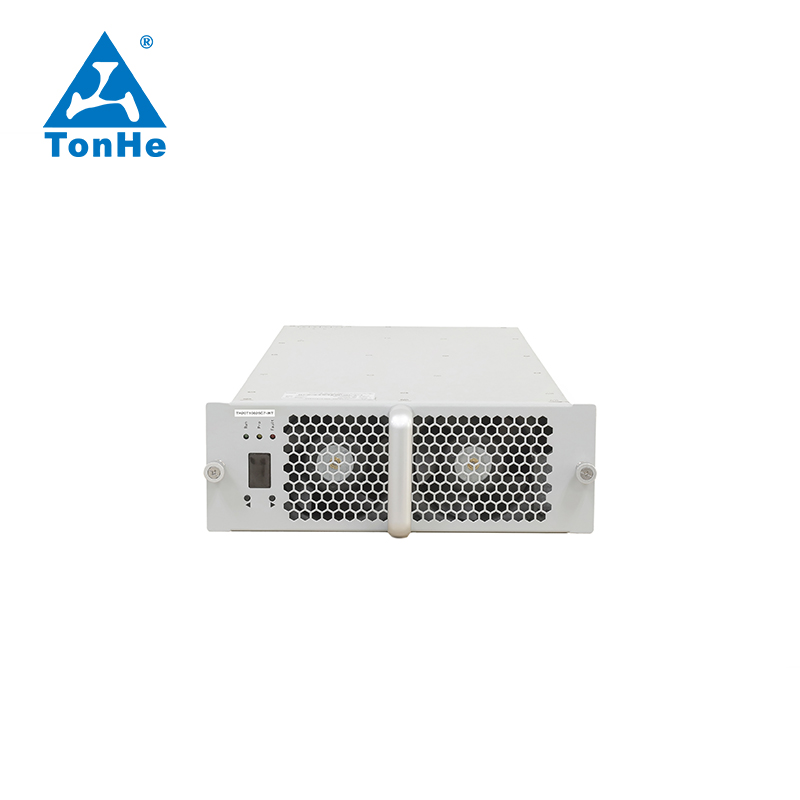

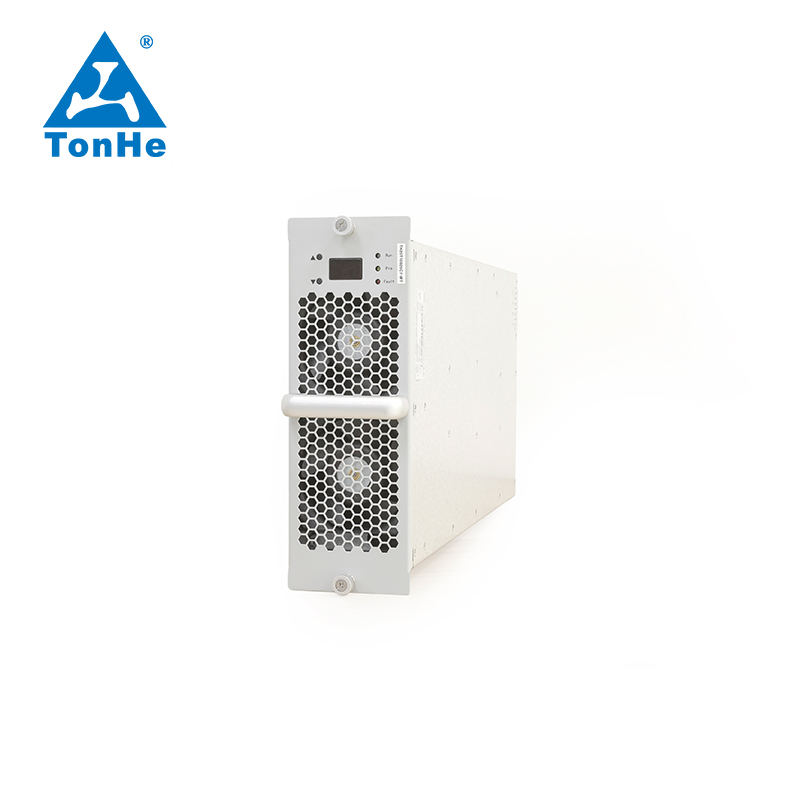

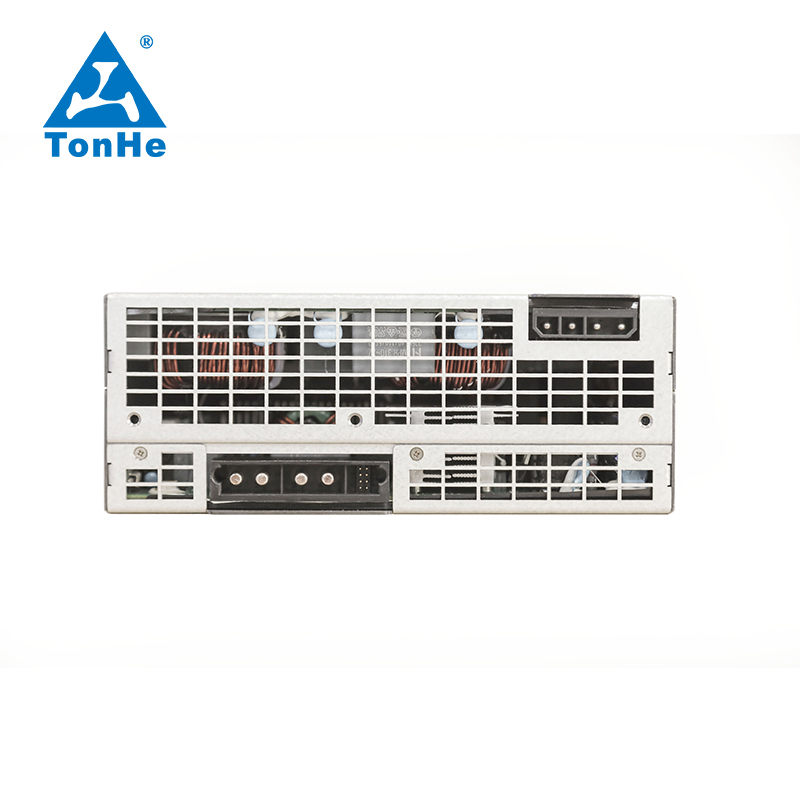

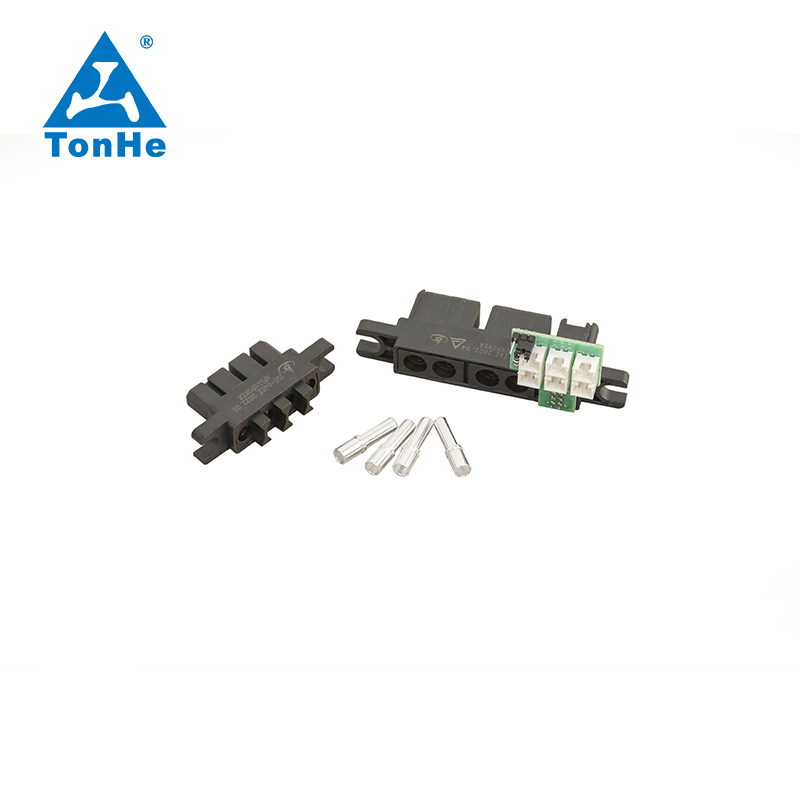

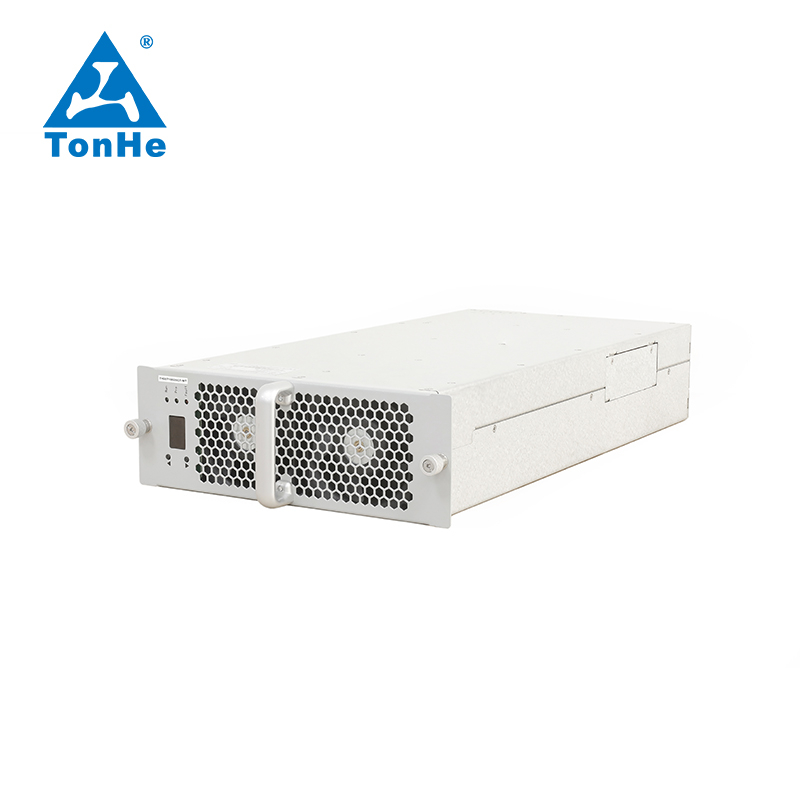

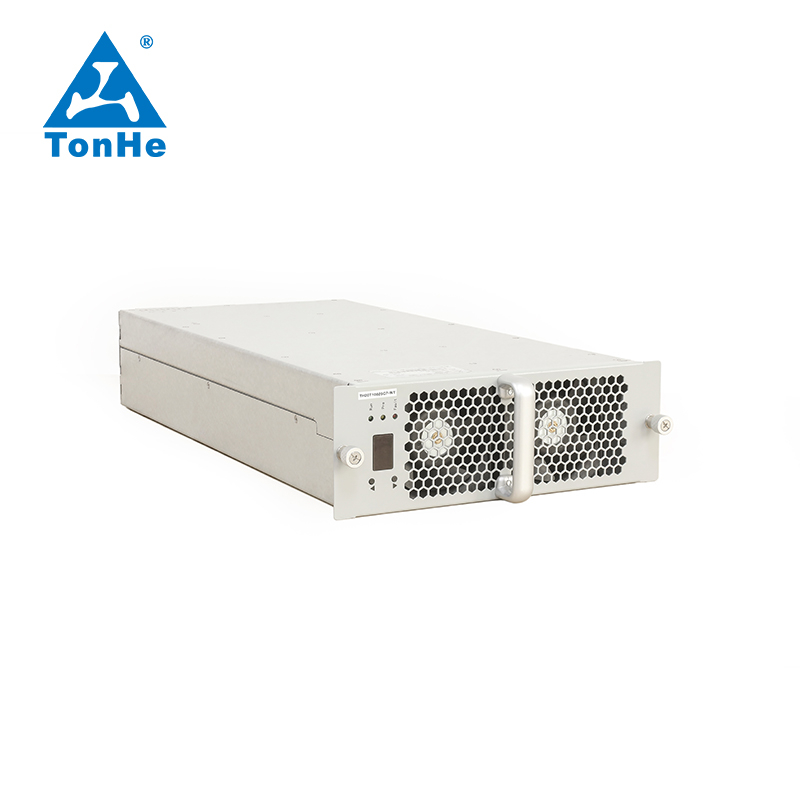

Product introduction

TH20T10025C7 is a high efficiency and high power density charging module specially developed by Tonhe Technology for mobile battery cabinet. This product support AC and DC dual input mode, which combines battery charging by the power grid and vehicle charging by battery. At the same time, it meets the size requirements of three unified module of State Grid.

Technical Date

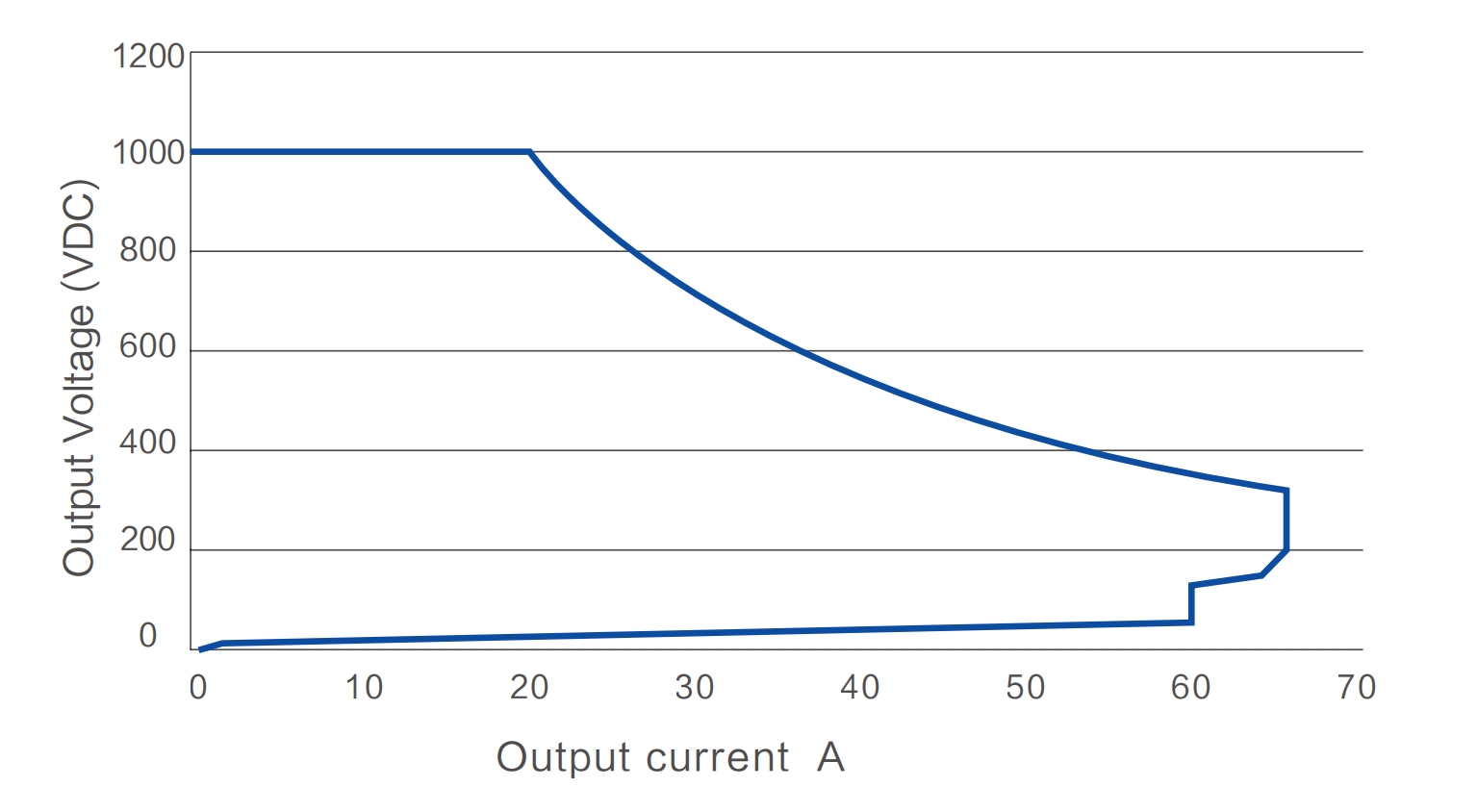

Output Voltage - Output Current Curve (AC Input)	Output Voltage - Output Current Curve (DC Input)

Model No	TH20T10025C7
AC input	Input voltage	Rated voltage 380VAC, three phase no center line，operating range 274-487VAC
	Input frequency	50/60±5Hz
	Input power factor	≥0.99
	Input overvoltage protection	490±10VAC
	Input undervoltage protection	270±10VAC
DC output	Rated output power	20kW
	Output voltage range	50~1000VDC
	Output current range	0.5~67A
	Output constant power range	When output is 300-1000VDC, constant 20kW output.
Output features	Peak efficiency	≥96%
	Soft start time	3~8S
	Short circuit protection	Self-rollback protection
	Voltage regulation accuracy	≤±0.5%
	THD	≤5%
	Current regulation accuracy	≤±1%
	Current sharing imbalance	≤±5%
Operating environment	Operating temperature	-40℃-+75℃
	Relative humidity	≤95% no condensation
	Altitude	≤2000m, derating above 2000m
Product Features	Cooling method	Fan cooling
	Standby power consumption	＜10W
	Communication Protocol	CAN
	Address setting	Digital screen display, keys operation
	Module dimension (without handle)	460*218*84mm(L*W*H)
	Weight	≤13kg
	MTBF	500000 hours
