TH30DS10030C8E-WT is a high-efficiency, high power density, ultra-wide constant power range DC/DC module developed by TONHE specifically for charging piles. This product supports 200-850Vdc input, 500-800Vdc constant power range, 30kW rated output power, 300-1000Vdc output constant power range, and high temperature within 55℃ full output range without derating. The charging module communicates with the main monitor via CAN bus to realize charging module parameter setting, collect charging module operation parameters and control charging module working status.
| Quantity: | |
|---|---|
TH30DS10030C8E-WT
Tonhe
TH30DS10030C8E-WT is a high-efficiency, high power density, ultra-wide constant power range DC/DC module developed by TONHE specifically for charging piles. This product supports 200-850Vdc input, 500-800Vdc constant power range, 30kW rated output power, 300-1000Vdc output constant power range, and high temperature within 55℃ full output range without derating. The charging module communicates with the main monitor via CAN bus to realize charging module parameter setting, collect charging module operation parameters and control charging module working status.
High Conversion Efficiency: peak efficiency ≥ 98%
Full load noise: 55dB
Wide output constant power range: 300-1000VDC
Ultra-low standby power consumption: <10W
Ultra-low total harmonic distortion: ≤5%
Ultra-wide operating temperature: -30℃~+75℃
|
|
|

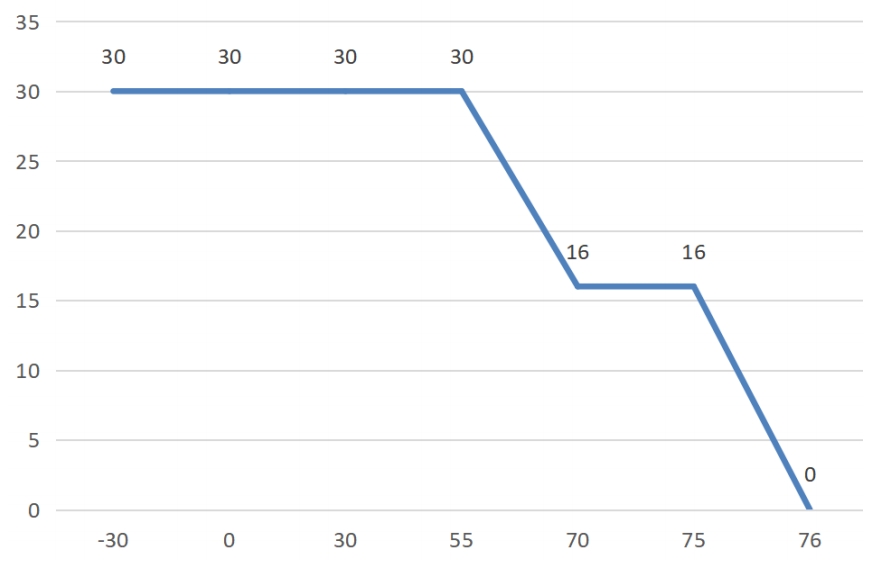

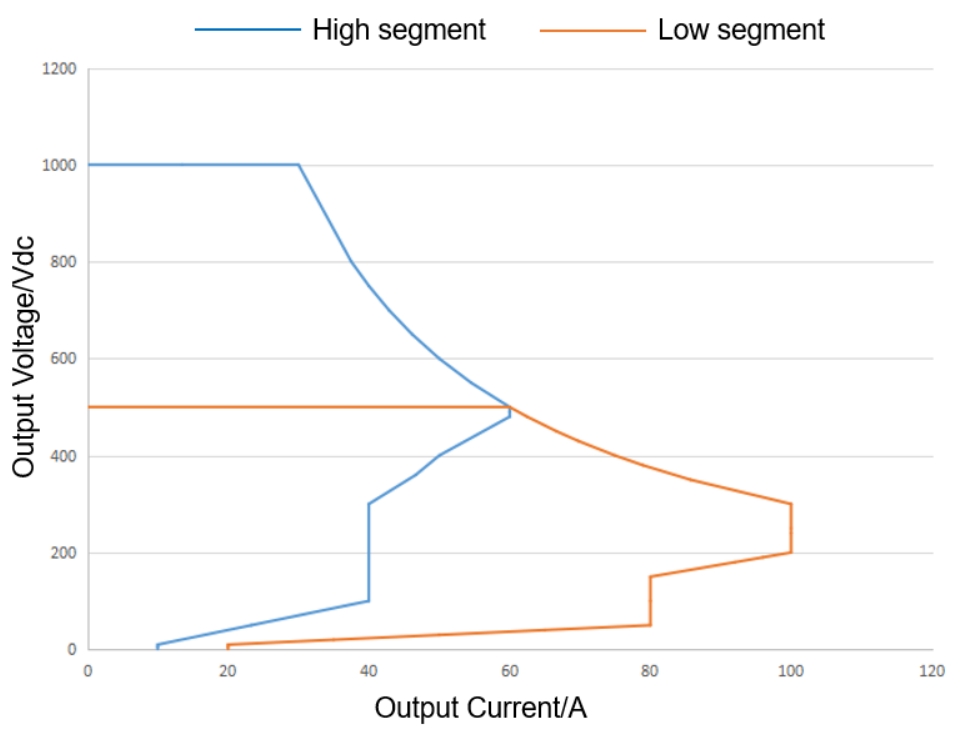

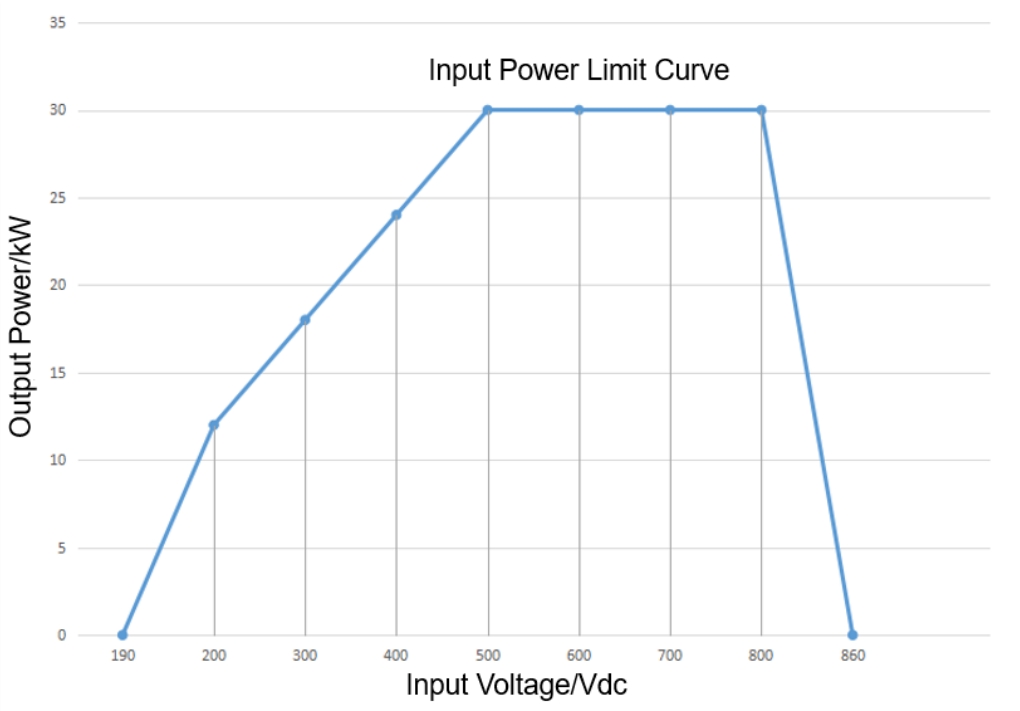

| Output Characteristics Curve | Input Power Limit Curve | Ambient Temperature Power Limit Curve |
Model No. | TH30DS10030C8E-WT | |
DC input | Input voltage | Rated voltage 750VDC,operating voltage range 200-850VDC |
Mixmum current | 60A | |
DC output | Rated output power | 30kW |
Output voltage range | 50~1000VDC | |
Output current range | 0.5~100A | |
Output constant power range | When output voltage is 300-1000VDC, constant 30kW will output. | |
Peak efficiency | ≥98% | |
Soft start time | 3~8S | |
Short circuit protection | Self-rollback protection | |
Voltage regulation accuracy | ≤±0.5 | |
Current regulation accuracy | ≤±1% | |
Current sharing imbalance | ≤±5% | |
Operating environment | Working temperature | -30℃~ +75℃ |
Relative humidity | 5%RH~95%RH no condensation | |
Altitude | ≤2000m, derating above 2000m | |
Product Features | Cooling method | Fan cooling |
Standby power consumption | ＜10W | |
Communication Protocol | CAN | |
Address setting | Digital screen display, button operation | |
Module dimension | 437.5mm*300mm*84mm(D*W*H) | |
Weight | ≤16kg | |
MTBF | 500000 hours | |
